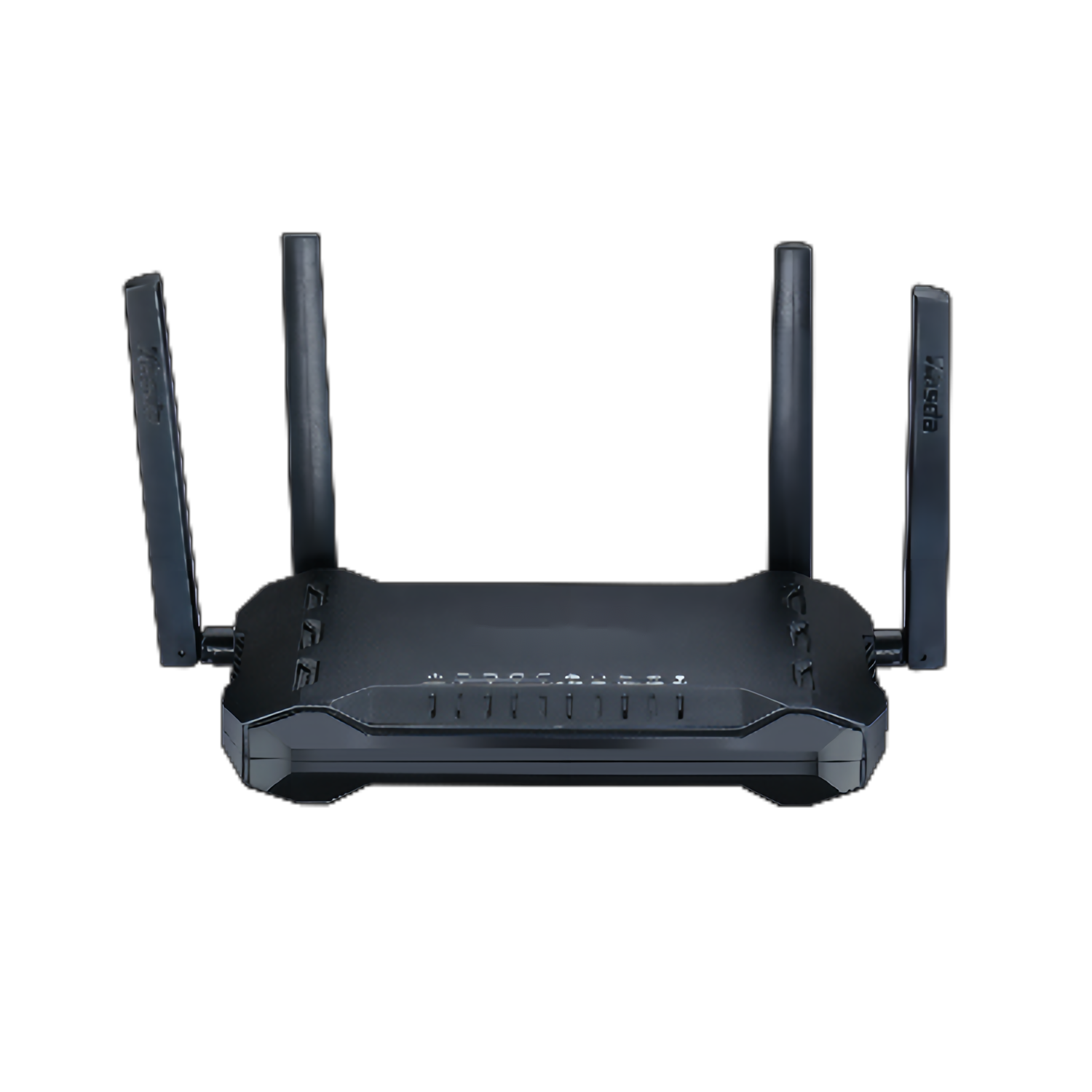

R736 WiFi7 3600Mbps Smart Mesh AP Router
Wireless and Wired Combined Backhaul
Multi-Link Operation (MLO)
-
Spesifications
|
BASIC |
 |
IEEE Standards IEEE 802.3, 802.3u, 802.3ab
|
Speed |
|
Wireless: 3600Mbps; Ethernet: 10/100/1000Mbps LAN ports |
 |
Operation Mode Wireless Router
|
WAN Connection Types PPPoE, DHCP,Static IP, Mesh AP/extender |
 |
WIRELESS
|
Wireless Standards |
|
5GHz: IEEE 802.11be/ax/802.11ac/802.11n/802.11a 2.4GHz: IEEE 802.11be/ax/802.11ac/802.11n/802.11g/802.11b |
 |
Frequency Range 2.4GHz, 5GHz,
|
Wireless Speed 2.4GHz 11be speed up to 688Mbps; 5GHz 11be speed up to 2882Mbps |
 |
Wireless Security 64/128-bit WEP/WPA-PSK/WPA2-PSK/TKIP/AES/WPA3
|
Transmit Power 25dBm(EIRP) |
 |
Wireless Features
Multi-SSID; EasyMesh compliance; Band steering; Smart roaming; Self-healing WiFi Backhaul
Beamforming for 5GHz Band; Access Control List; WDS ,WMM, WMF; Hide Access Point; Clients Isolation; Disable WMM Advertise; MAC filter; MU-MIMO, OFDMA; 16QAM,64QAM,256QAM,
|
SOFTWARE |
Function Features
Static route, Dynamic RIPv1, RIPv2 support; DMZ support; NAT Application Level Gateway for popular applications; DHCP Server/Relay/client ; DNS Relay Agent/DDNS support; PPP Auto Reconnect on WAN Access/PPP; IGMP snooping v1/2 and IGMP Multicast
|
Security Support |
|
64/128-bit WEP/WPA-PSK/WPA2-PSK/TKIP/AES/WPA3; Parental control; PAP/CHAP for PPP mode; NAT forFirewall SPI Firewall; 2 Level (User/Admin) Authentication to Router; IP and MAC Filtering |
Management Support Web Based GUI; FTP /HTTP/Telnet/SSH; Command Line Interface ; Diagnostic Test; Firmware upgrade-able Remote Access Control ; TR-069 Remote Management
|
VPN IPSec/PPTP/L2TPpassthrough |
 |
Port Forwarding Virtual server, Port Triggering, DMZ, ALG, UPnP
|
Dynamic DNS DynDns,TZO |
 |
DHCP Server, Client, DHCP Client List , Address Reservation, DHCP relay
|
HARDWARE |
|
Priority Queuing, Classification Rules802.1p |
|
QoS |
 |
Physical Interface
1 * GE WAN (Optional: R736L with 1 x 2.5Gbps WAN) 4 * 100/100/1000 RJ45 Ports for LAN
1 * USB3.0
|
Buttons 1 * Power slot; 1 * WPS Button; 1 * Reset Button |
Power Input: 100-240V AC,50Hz; Output: 12V/1.5A
|
LED Indicators Power,Internet, 2.4G, 5G, WPS, WAN, LAN1/2/3/4 |
 |
Antenna 4 x 5 dBi External antennas (2 for 2.4GHz, 2 for 5GHz)
|
CPU Broadcom BCM6764, Quad Core A7 2.0GHz/15.2K+ |
 |
Memory Flash/SDRAM: 128MB/256MB
- Spesifications
|
OTHERS |
 |
Operation System Windows 7,8,10,XP, VISTA/Macintosh/Linux
|
Package Content Power Adapterx 1, InstallationManualx 1,RJ45 Cable x 1 |
Environment
Operating Temperature: 0°C~40°C(32~104℉ ); Storage Temperature: 0°C~40°C;
Operating Humidity: 5%~95% non-condensing ; Storage Humidity: 5%~90% non-condensing
|
Warranty One year |
Dimension 245*182*60mm
|
Weight 450g |
 |
