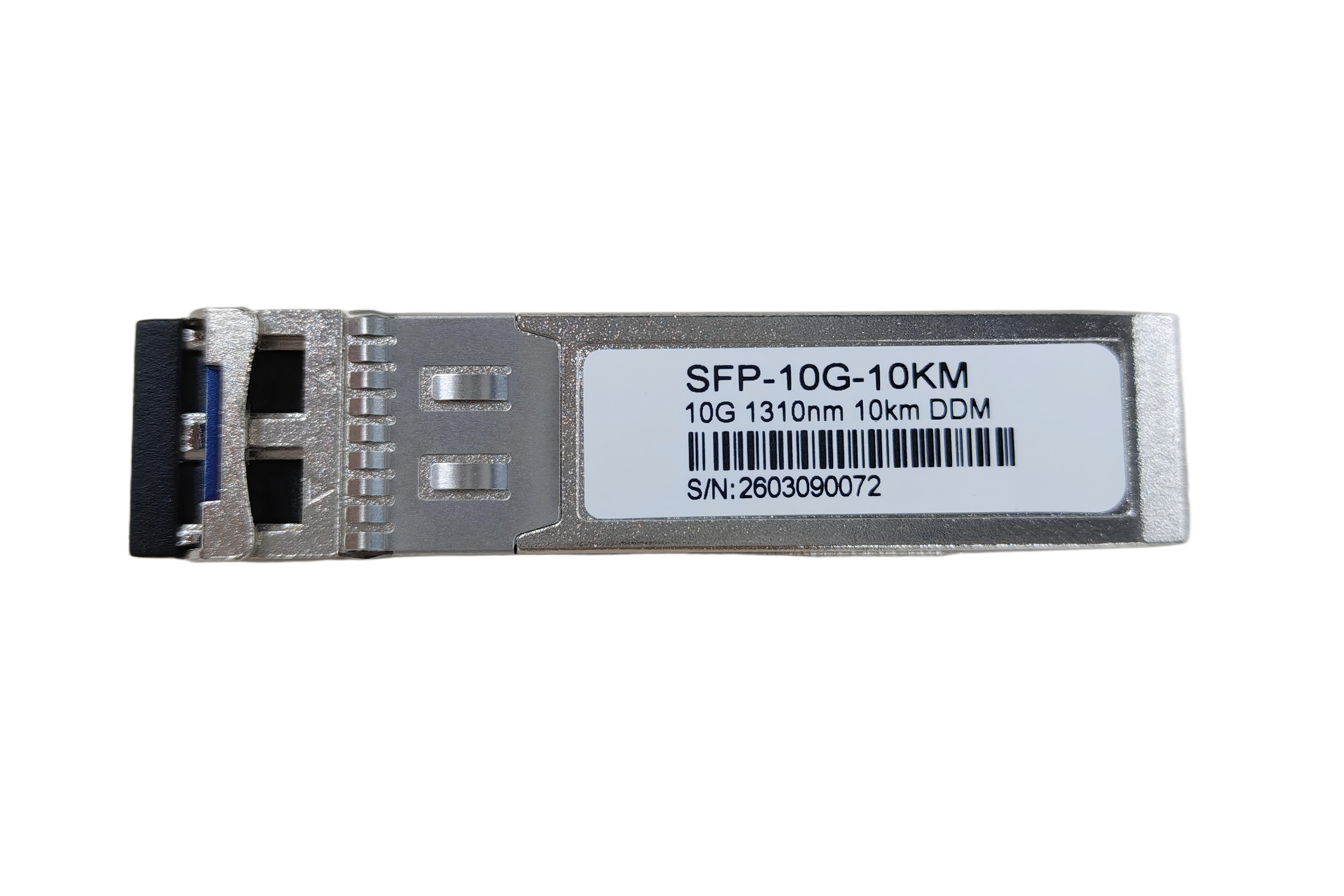

SFP10G1310L-10KC

Features

• • Up to 10.6Gbps data links
  • 1310nm DFB Laser and PIN photo-detector
  • Up to 10km on 9/125µm SMF
  • Duplex LC receptacle optical interface compliant
  • Hot pluggable
  • All-metal housing for superior EMI performance
  • RoHS6 compliant (lead free)
  • Operating case temperature:

Commercial: -5ºC to +70°C

Extended: -20ºC to +80°C

Industrial: -40ºC to +85°C

Applications

• • 10GBASE-LR/LW 10G Ethernet
  • 10G Fibre Channel
  • 10G SONET
  • Other optical links

Standards

• • Compliant with SFP+ MSA
  • Compliant with SFF-8472
  • Compatible with IEEE802.3ae

Description

The SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 10km over Single Mode Fiber.

The transceivers are compatible with SFP+ MSA and SFF-8472. For further information, please refer to SFP+ MSA and SFF-8472.
