KF3082 10GE+1 GE XGS-PON ONT
ITU-T G.984.1-4
ITU-T G.988 /ITU-T G.9807.1 32 TCONTs /256GEM ports
8 Egress queues per TCONT at least
VLAN or VLAN plus priority gem mapping mode
SN/LOI D/SN+ Password authentication Performance monitoring: eth/Gem port Dying gasp
|
XGSPON ITU-T G.984.1-4 ITU-T G.988 /ITU-T G.9807.1 32 TCONTs /256GEM ports 8 Egress queues per TCONT at least VLAN or VLAN plus priority gem mapping mode SN/LOI D/SN+ Password authentication Performance monitoring: eth/Gem port Dying gasp |
|
Layer 2 Features MAC learning (SVL)/aging Support max frame length to1518 bytes VLAN tagging for untagged packets Support VLAN 1-4094 VLAN transparent/translation |
Hardware Interface
|
CPU Frequency |
1GHz dual-core |
|
Flash |
128MB NAND |
|
Memory |
512MB DDR4 |
|
LED |
POWER+PON+LOS+10GE +1GE |
|

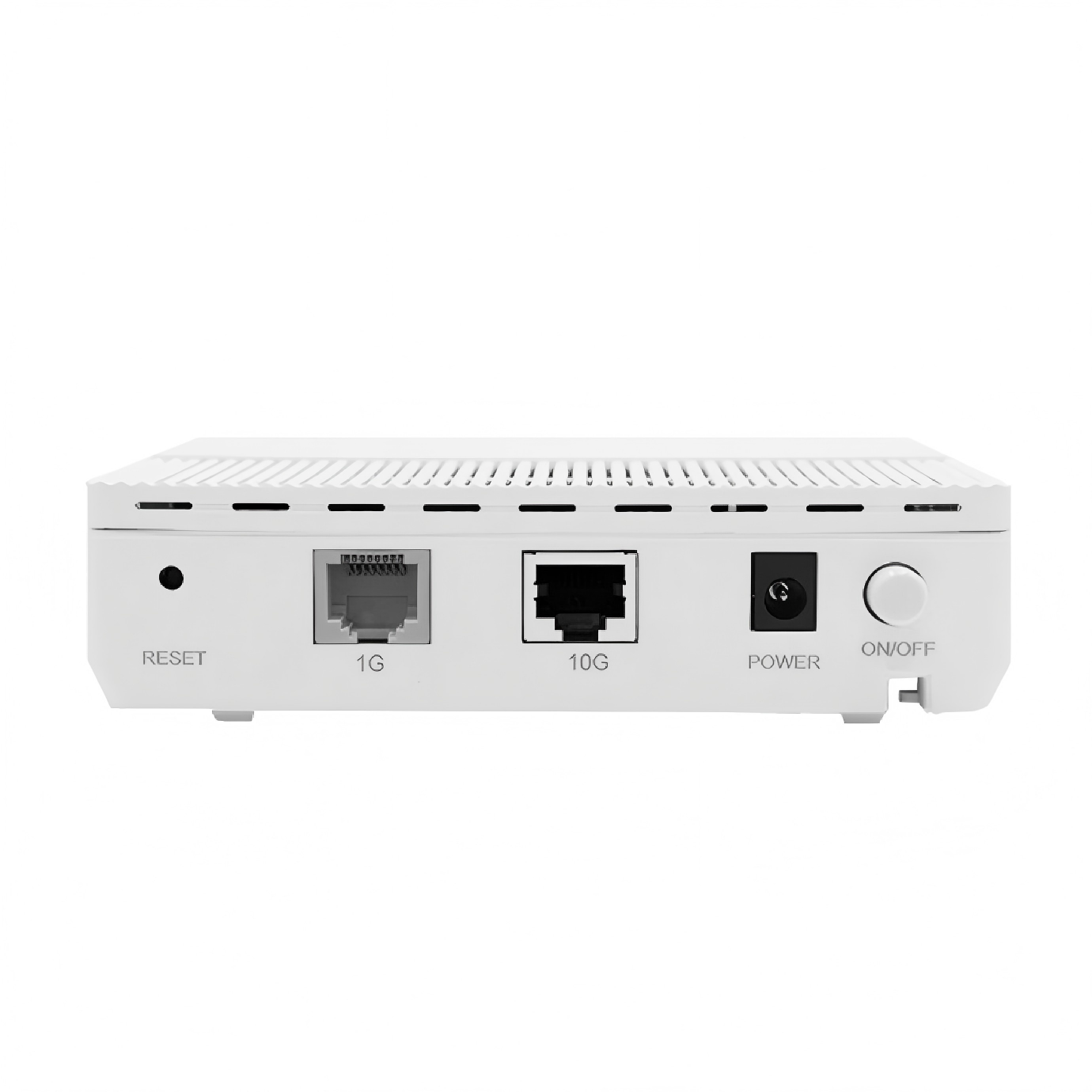

Port |
1*1RJ45(10GE) |
|
1*1RJ45(GE) |
|
|
1*Reset+1*Power Jack |
|
|
1*SC/APC (or SC/UPC) |
|
|
1*DC in |
|
|
Size |
135*90*34 mm |
|
consumption |
≤12W |
QoS
Support 8 Queues with Strict Priority Ethernet port rate limitation
802.1ppriority
SP/WRR/SP+WRR
Service flow classification
Product Function
Multicast
· IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376) · IGMP snooping and IGMP Proxy
· MLD v1/v2
|
Product Function-Continued
Management
· OMCI/Web UI/TR069
· SSH management with CLI commands
· Dual-system software backup and rollback
