LAN868_8dbi LoRa Antenna
858-878MHz 8dBi Fiberglass Antenna
- Frequency Range: 858~878 MHz
- Max Gain: 8.0 dBi
- VSWR: ≤ 1.5
- High efficiency
- Vertically polarized dipole
- Easy to mount with the included Installation kit
Specifications
|
Model |
LW101-868 |
|
Frequency Range |
858 MHz~878 MHz |
|
Peak Gain |
8.0 dBi (±1d Bi) |
|
Horizontal Beamwidth |
360º |
|
Vertical Beamwidth |
8±3 |
|
VSWR |
≤ 1.5 |
|
Max. Power |
100W |
|
Feed Impedance |
50 Ω |
|
Polarization |
Vertical |
|
Cover Material(color) |
Fiberglass (White) |
|
Connector Type |
N-type male |
|
Dimensions (mm) |
Փ32.0 mm x 1500.0 mm |
|
Rated Wind Velocity |
36.9m/s |
|
Operation Temp (°C) |
-30 °C ~ +65 °C |
|
Humidity Range |
5%~95% |

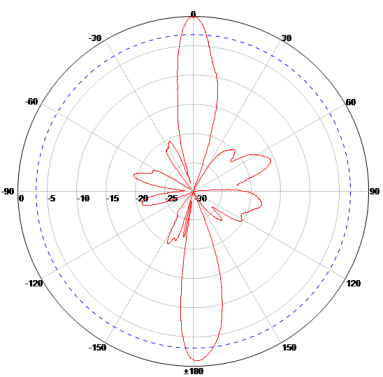

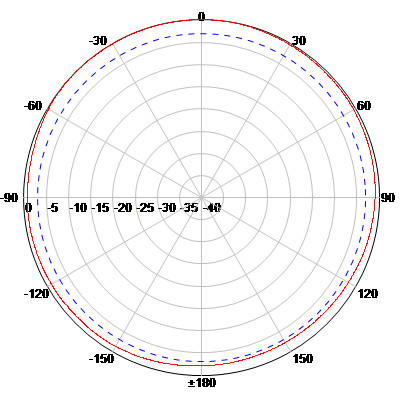

Radiation Patterns
H-Plane E-Plane
